Diver Installed Smart Clamp

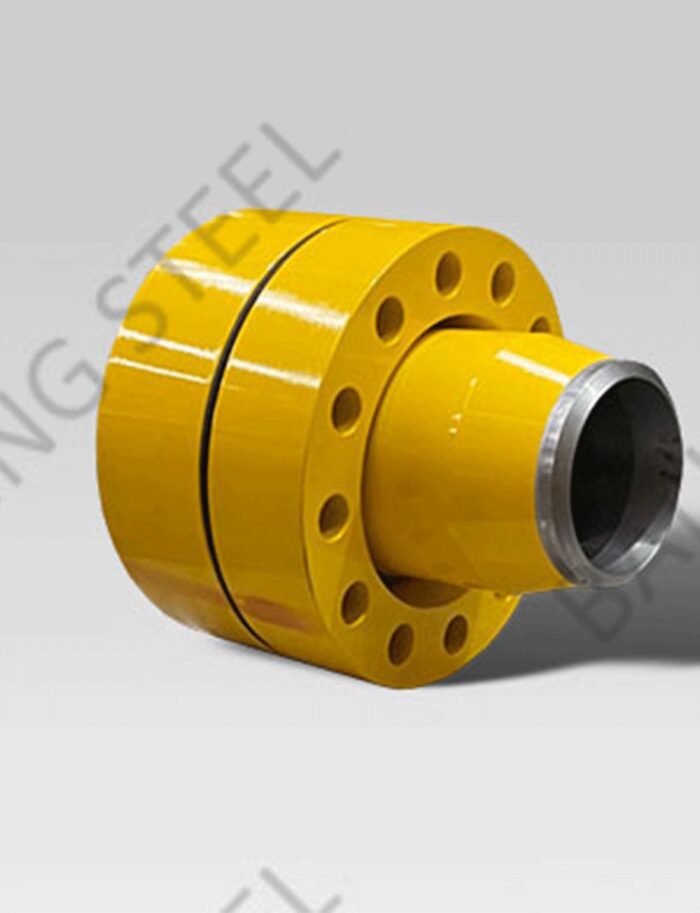

Ball Flange Connector

In Marine engineering, the general pipeline connection adopts the flange connection of the conventional structure, the structure is simple, if the position and Angle of the pipeline to be connected are strict, a little offset and tilt can not be well connected, causing greater difficulty for the pipeline construction, therefore, a flexible connection is needed, the environmental requirements are not strict, allowing the pipeline to offset or rotate, and can be closely connected Connecting device. The spherical flange joint not only can realize the underwater accurate positioning function, but also can realize the docking of two pipe sections that are not in the same straight line, which greatly reduces the precision requirements of the construction of the butt pipe section.

Contact Us
WhatsApp
Category:
Description

DATASHEET:

◆Size :4 inch - custom size.

◆Corrosion protection: coating + anode

◆Pressure rating :≥150LB

◆Design life: more than 25 years.

◆Applicable media: oil, natural gas and oil and gas mixture, etc.

◆Main role: Used to connect different heart of the pipeline.

◆Features: Deflection Angle ±10°, the ball can be rotated 360, with self-sealing test function.

◆Material:A105,ASTM A516 Gr. 70,A350 LF2,A694 F52/F65/F70/F80/A182 F304/F316/F321/F51/F53/F55 Nickel alloy

◆Coating:F.B.E, Carboline, etc. as required



FUNCTION INTRODUCTION:

  1. Ball flange outer ring inner body as the center 360°free rotation, to achieve the accurate positioning of the bolt hole underwater connection, easy to install.
  2. According to ASME standard, the inner body of the ball flange adopts groove design, which is convenient for pipe welding connection.
  3. The sealing surface of the ball flange is connected with the sealing gasket by the ring groove connecting surface (RTJ) to play a sealing role.
  4. In any environment, allow the center line of adjacent pipelines to deviate from +/-10° to realize the docking of two pipelines that are not in the same straight line.
  5. Ball flanges can be designed for any size and pressure level, and can also be designed according to customer requirements non-standard ball flanges to apply to some special Applications, such as surfacing of the inner sphere or PTFE coating of the flange surface.
Additional information
Keywords

Ball flange
Size

4 inch – custom size.
Standard & Grade

ASTM A516 Gr. 70,A350 LF2,A694 F52/F65/F70/F80/A182 F304/F316/F321/F51/F53/F55 Nickel alloy
Ends

Beveled End

,

Plain End

,

Thread End
Delivery

Within 30 days and Depends on your order quantity
Payment

D/P

,

LC

,

OA

,

TT
Usage

Petroleum, aerospace, chemical, electric power, boiler, military and other industries
