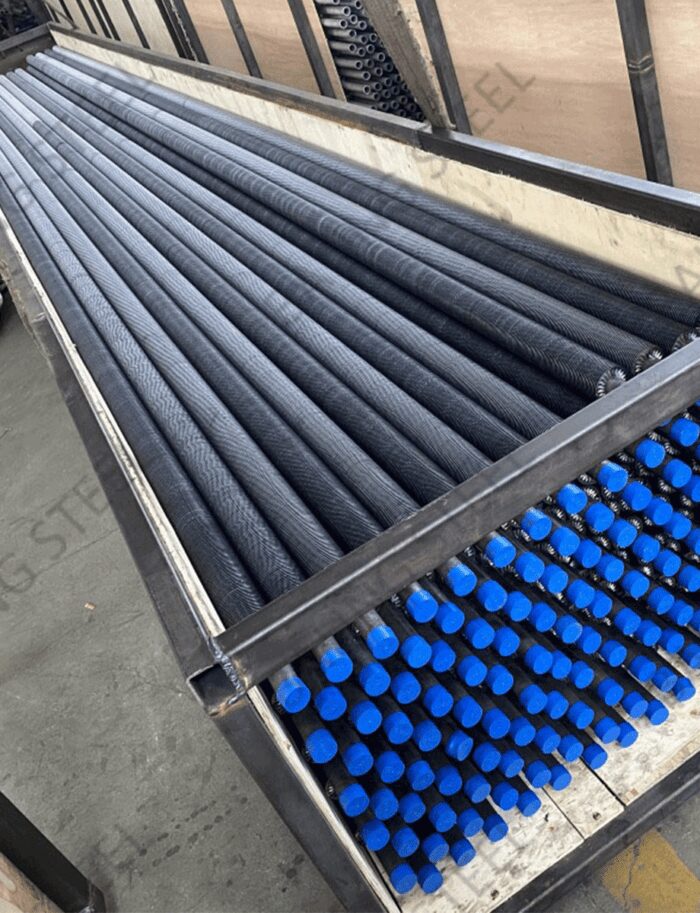

Seamless Steel Pipe Fin Tube

Description

Set fin tube

The finning process is to process a batch of individual fins in advance by punching machine, and then set the fins on the outer surface of the pipe by manual or mechanical method according to a certain distance height (fin pitch) by interference. It is one of the earliest methods used to process finned tubes.

Mosaic spiral fin tube

The embedded spiral finned tube is a spiral groove of a certain width and depth pre-machined on the steel pipe, and then the steel strip is embedded on the steel pipe on the lathe. During the winding process, due to a certain preload, the steel belt will be tightly tightened in the spiral groove, so as to ensure that there is a certain contact area between the steel belt and the steel pipe. In order to prevent the steel strip from bouncing off, the two ends of the steel strip should be welded to the steel pipe. In order to facilitate the setting, there should be a certain side gap between the steel belt and the spiral groove. If the side gap is too small and interference is formed, the Mosaic process is difficult to proceed smoothly. In addition, the wound steel strip always has a certain rebound, the result makes the steel strip and the bottom of the spiral groove can not be well engaged. The Mosaic fin can be carried out on the general equipment, the cost is not high, but the process is complex and the production efficiency is low.

Brazed spiral fin tube

The brazed spiral finned tube is processed in two steps. First, the steel strip plane perpendicular to the axis of the pipe is wound on the outer surface of the pipe in a spiral way, and the two ends of the steel strip are welded on the steel pipe to fix, and then in order to eliminate the gap between the steel strip and the steel pipe contact, the steel strip and the steel pipe are welded together by brazing method.

High frequency welding spiral fin tube

High frequency spiral fin tube is one of the most widely used spiral fin tube, and is widely used in power, metallurgy, cement industry waste heat recovery and petrochemical industry. The high frequency welding spiral finned tube is to heat the outer surface of the steel strip and steel pipe until the plastic state or melting by using the skin effect and proximity effect of high frequency current while the steel strip is winding the steel pipe, and weld under a certain pressure of the winding steel strip. This high frequency welding is actually a solid phase welding. It is more advanced than inlaying, brazing (or overall hot dip galvanizing) methods, both in terms of product quality (fin welding rate is high, up to 95%), and productivity and automation.

Three high skew rolled integral spiral finned tube

The production principle of the three-roll diagonal rolling integral spiral finned tube is as follows: a core bar is lined in the smooth tube, and the seamless steel tube is driven by the rotation of the roll blade through the hole cavity composed of the rolling groove and the core head. The finned tube produced by this method has high heat transfer efficiency because the base tube and the outer fin are an organic whole, so there is no problem of contact thermal resistance loss. Compared with the welding method, this production line has the advantages of high production efficiency, low consumption of raw materials and high heat transfer rate of finned tubes.

Additional information

Keywords	Boiler Pipe , Carbon Seamless Steel Pipe , Carbon Steel Pipe
Size	0.84'' ~ 28'' (21.3 ~ 711mm)；WT: 0.091'' ~ 1.575'' (2.3 ~ 40mm)；LENGTH: Fixed Length (5.8/6/11.8/12 mtr), SRL, DRL
Standard & Grade	ASTM A179 , ASTM A192 , ASTM A210 , etc
Ends	Beveled/Threaded Ends , Square Ends/Plain Ends (straight cut, saw cut, torch cut)
Delivery	Within 30 days and Depends on your order quantity
Payment	D/P , LC , OA , TT
Usage	Aerospace , Boiler , chemical , Electric Power , Military And Other Industries , Petroleum

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Seamless Steel Pipe Fin Tube”

Shipping & Delivery

Uses of packaging in the steel industry

Protective function

- Prevent steel products from physical damage, such as collision, scratching and extrusion, during transport, storage and handling to avoid affecting the quality and appearance of the products.

- Insulate from external environmental factors, such as humid air, rain, dust, etc., to reduce the risk of rust and corrosion of steel and ensure the performance and service life of the products.

Wooden box packaging

- Use: Mainly used to protect some irregular shape, easy to damage or high requirements for packaging of steel products, such as precision parts and components.

- Specific description: the wooden box is made of thick wooden boards, and cushioning materials, such as foam, air cushion, etc., may be added inside to reduce the impact of vibration and collision on the product.

Anti-rust paper packaging

- Purpose: To prevent rust and corrosion of steel products, especially suitable for storage or transportation in a humid environment.

- Specific description: anti-rust paper usually contains rust inhibitors, can be in contact with the metal surface to form a protective film, blocking the erosion of moisture and oxygen.

Plastic film packaging

- Purpose: To provide basic protection against dust and moisture, commonly used for small steel products.

- Specific description: plastic film has a certain degree of flexibility and sealing, can be tightly wrapped in the product surface, effectively isolate the external environment.

Pallet packaging

- Purpose: To facilitate the stacking and handling of steel products, and improve logistics efficiency.

- Specific description: The pallet is usually made of wood or plastic, the steel products are placed on the pallet, and then the forklift and other tools can be used for handling and loading and unloading.

Factory container packing

- Purpose: It is used for mass transportation of iron and steel products, to protect the products and improve the utilization rate of transportation space.

- Specific description: Containers have a strong structure and good sealing, and can adapt to long-distance transportation and the conversion of multiple modes of transportation.

Anti-rust oil coating packaging

- Purpose: To form a layer of antirust oil film on the surface of steel and enhance the antirust ability.

- Specific description: evenly cover the steel surface with anti-rust oil by brushing or soaking to form a durable protective layer.

Metal Corner Protection Packaging

- Purpose: To protect the corners and edges of steel products from damage during handling and transportation.

- Specific description: Metal corner guards are usually installed on the corners of products, using welding, bolting and other methods to increase the strength and impact resistance of the corners.

Baling Steel's packaging will surely convey to you our dedication to quality. We understand the importance of packaging to the quality of steel products and transportation safety, so we strive for excellence in the selection of packaging materials, so that you do not have to worry about the loss of transportation, and fully feel our professionalism and dedication!
