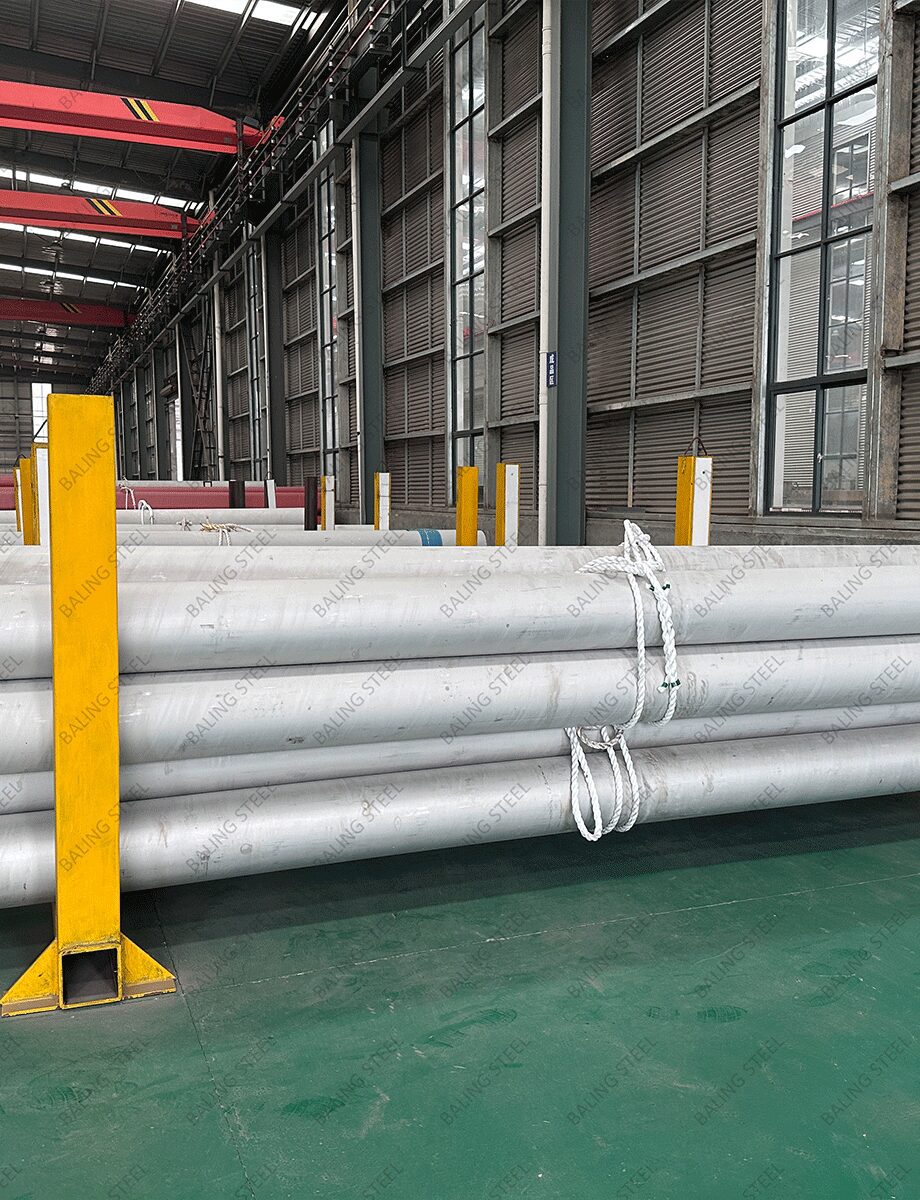

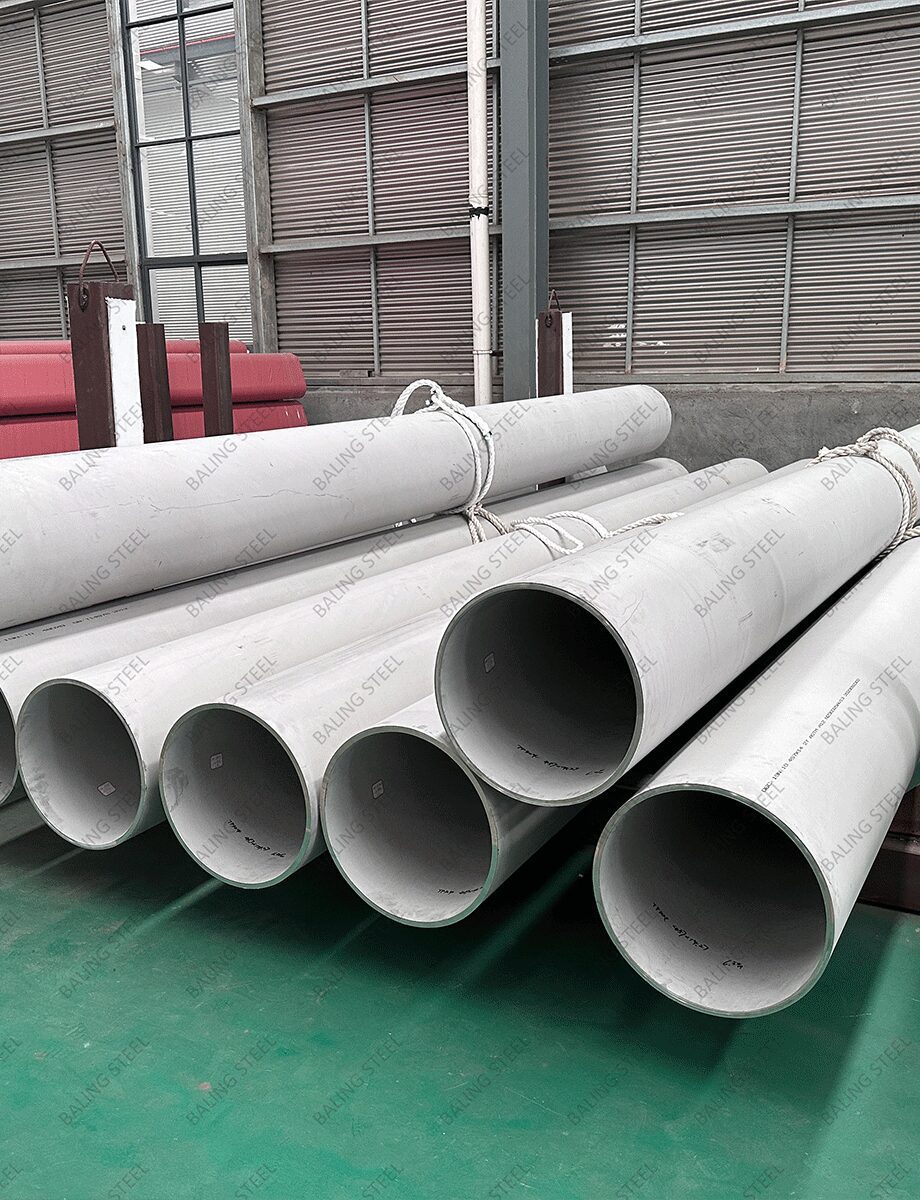

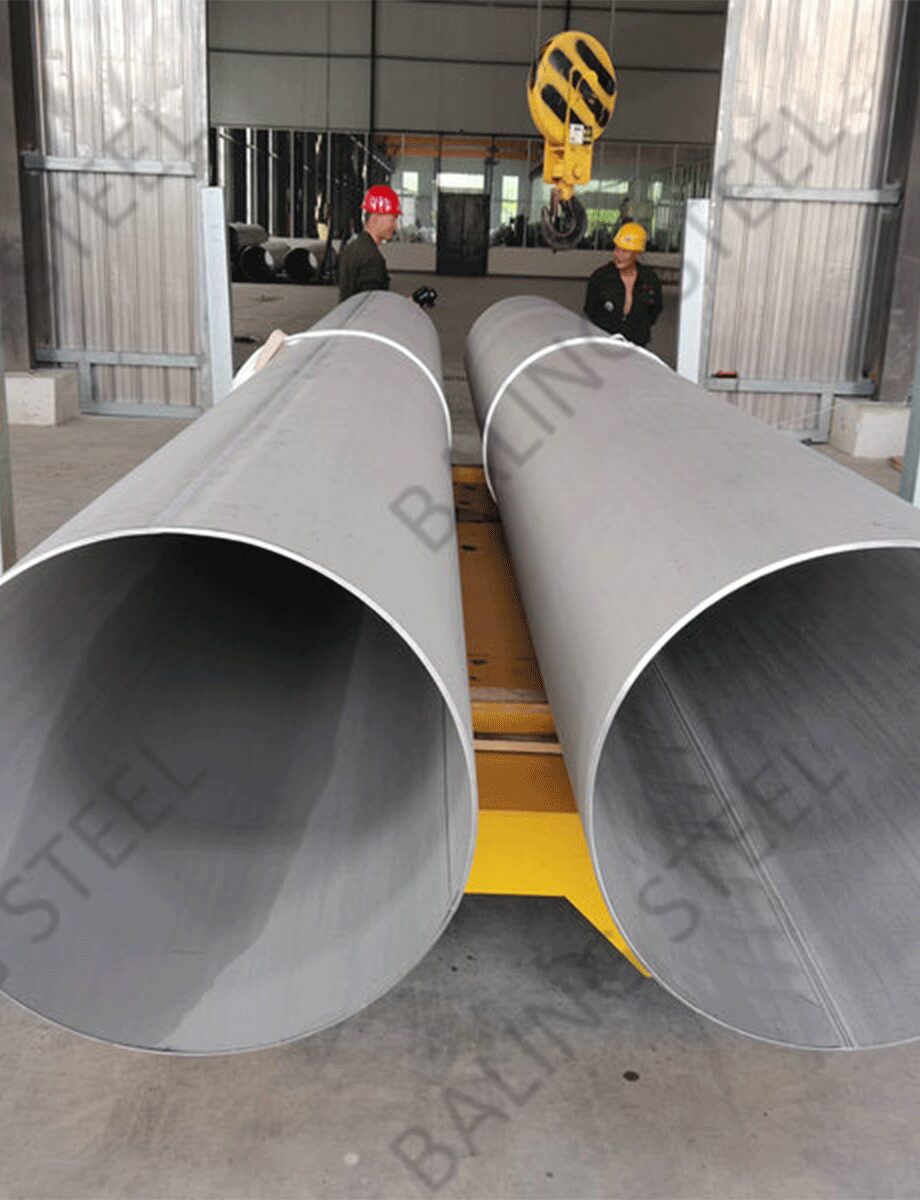

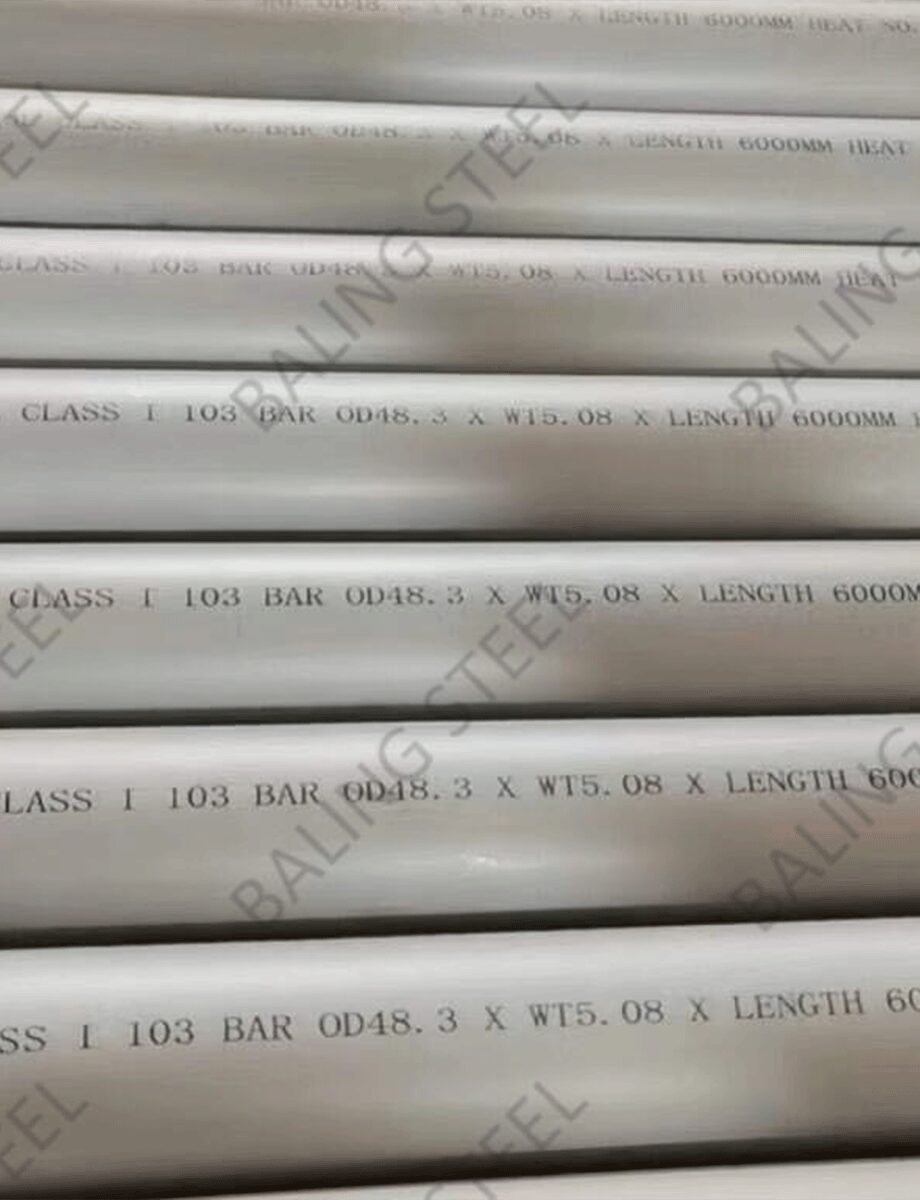

SS316 Stainless Steel Pipe

316L Stainless steel pipe made up of the 316 material with low carbon content. To concentrate on the 316 material. It is easy to find stainless steel 316 material made up of chromium-nickel alloy with the addition of molybdenum to the composition. These make the material be more corrosion resistant to most hostile conditions. The stainless steel 316L pipe is easy to weld. This will let the 316L stainless steel manufactured to be other industrial products. Some other specialists think it will be the next 304 stainless steel in the industrial material application. Because of the corrosion resistance. The stainless steel 316L pipe is widely used in the sea project.

Category: Stainless Steel Pipe

Description

Type 316L is the low carbon version of 316 stainless. With the addition of molybdenum, the steel is popular for use in severe corrosion environments due to the materials immunity from boundary carbide precipitation (sensitisation). The material is widely used in heavy gauge welded components and weld annealing is only required where the material is for use in high stress environments. 316L has an extensive variety of uses especially in marine applications due to the materials high corrosion resistance.

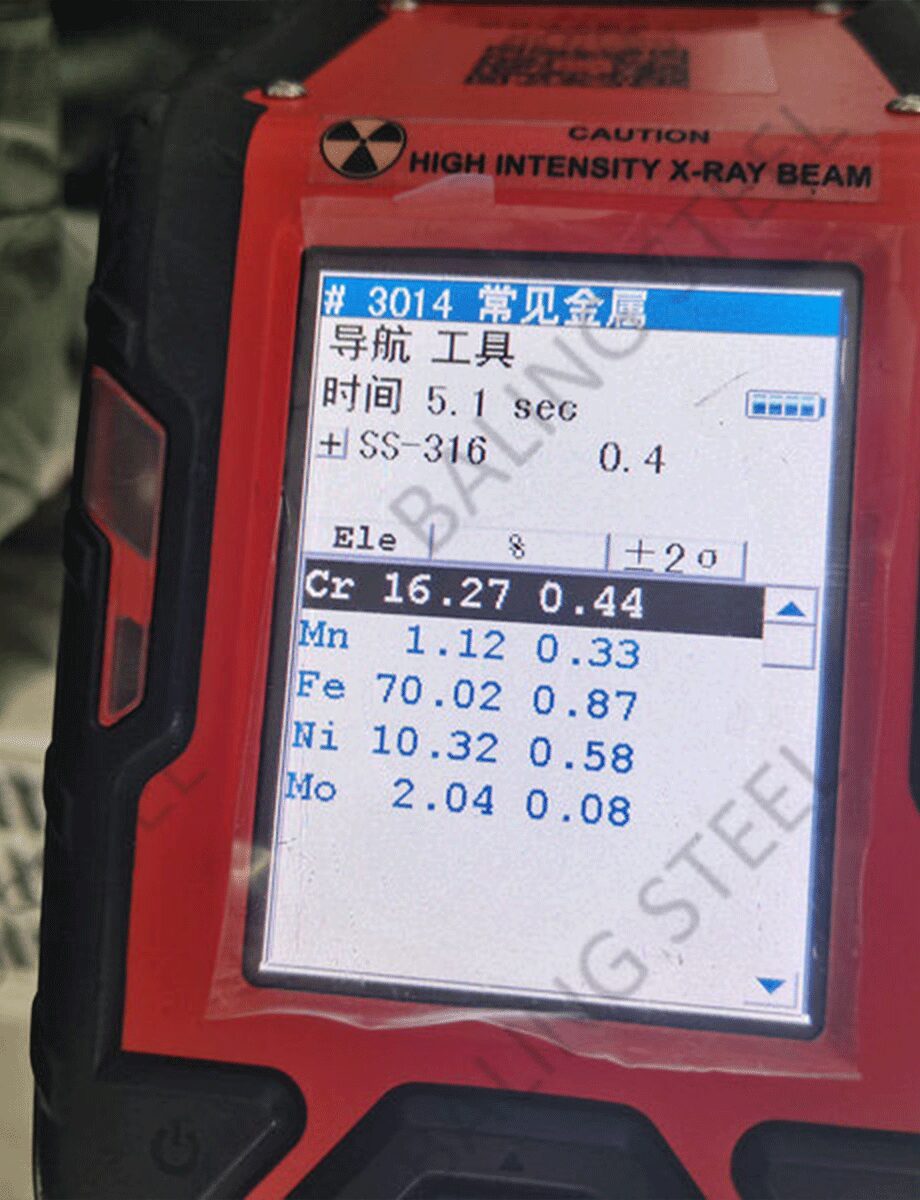

Chemical Composition

Grades	C max	Mn max	P max	S max	Si max	Cr	Ni	Mo
304	0.08	2	0.04	0.03	0.075	18.00-20.00	8.00-11.00	/
304L	0.035	2	0.04	0.03	0.075	18.00-20.00	8.00-13.00	/
316	0.08	2	0.04	0.03	0.075	16.00-18.00	11.00-14.00	2.00-3.00
316L	0.035	2	0.04	0.03	0.075	16.00-18.00	10.00-15.00	2.00-3.00

Mechanical properties

Grades	Itemper	Tensile Psi	Yield Psi	Elong %	Rockwell Hardness
304	Annealed	85000-105000	35000-75000	20-55	80-95
304L	Annealed	80000-105000	30000-75000	20-55	75-95
316	Annealed	85000 min	35000 min	50 min	80 min
316L	Annealed	80000 min	30000 min	50 min	75 min

Additional information

Keywords	Stainless Steel Pipe, Stainless Steel Tube, Stainless Steel Tubing
Size	Outside Diameter: 1/8''~24''; Wall Thickness: SCH 5 ~ Double Extra Heavy
Standard & Grade	304,304L,316,316L,310,310S,304H,S32205,S32750,S32760,S32304,S31803,S40900,S44600,1Cr13,2Cr13,11Cr17.
Ends	Plain end/Beveled, grooved, threaded and coupling, etc.
Delivery	Within 30 days and Depends on your order quantity
Payment	D/P , LC , OA , TT
Usage	In Chemical Industry, Coal, Oil Field Open Machine, Building Materials Heat-resistant Parts.

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “SS316 Stainless Steel Pipe”

Shipping & Delivery

Uses of packaging in the steel industry

Protective function

- Prevent steel products from physical damage, such as collision, scratching and extrusion, during transport, storage and handling to avoid affecting the quality and appearance of the products.

- Insulate from external environmental factors, such as humid air, rain, dust, etc., to reduce the risk of rust and corrosion of steel and ensure the performance and service life of the products.

Wooden box packaging

- Use: Mainly used to protect some irregular shape, easy to damage or high requirements for packaging of steel products, such as precision parts and components.

- Specific description: the wooden box is made of thick wooden boards, and cushioning materials, such as foam, air cushion, etc., may be added inside to reduce the impact of vibration and collision on the product.

Anti-rust paper packaging

- Purpose: To prevent rust and corrosion of steel products, especially suitable for storage or transportation in a humid environment.

- Specific description: anti-rust paper usually contains rust inhibitors, can be in contact with the metal surface to form a protective film, blocking the erosion of moisture and oxygen.

Plastic film packaging

- Purpose: To provide basic protection against dust and moisture, commonly used for small steel products.

- Specific description: plastic film has a certain degree of flexibility and sealing, can be tightly wrapped in the product surface, effectively isolate the external environment.

Pallet packaging

- Purpose: To facilitate the stacking and handling of steel products, and improve logistics efficiency.

- Specific description: The pallet is usually made of wood or plastic, the steel products are placed on the pallet, and then the forklift and other tools can be used for handling and loading and unloading.

Factory container packing

- Purpose: It is used for mass transportation of iron and steel products, to protect the products and improve the utilization rate of transportation space.

- Specific description: Containers have a strong structure and good sealing, and can adapt to long-distance transportation and the conversion of multiple modes of transportation.

Anti-rust oil coating packaging

- Purpose: To form a layer of antirust oil film on the surface of steel and enhance the antirust ability.

- Specific description: evenly cover the steel surface with anti-rust oil by brushing or soaking to form a durable protective layer.

Metal Corner Protection Packaging

- Purpose: To protect the corners and edges of steel products from damage during handling and transportation.

- Specific description: Metal corner guards are usually installed on the corners of products, using welding, bolting and other methods to increase the strength and impact resistance of the corners.

Baling Steel's packaging will surely convey to you our dedication to quality. We understand the importance of packaging to the quality of steel products and transportation safety, so we strive for excellence in the selection of packaging materials, so that you do not have to worry about the loss of transportation, and fully feel our professionalism and dedication!
